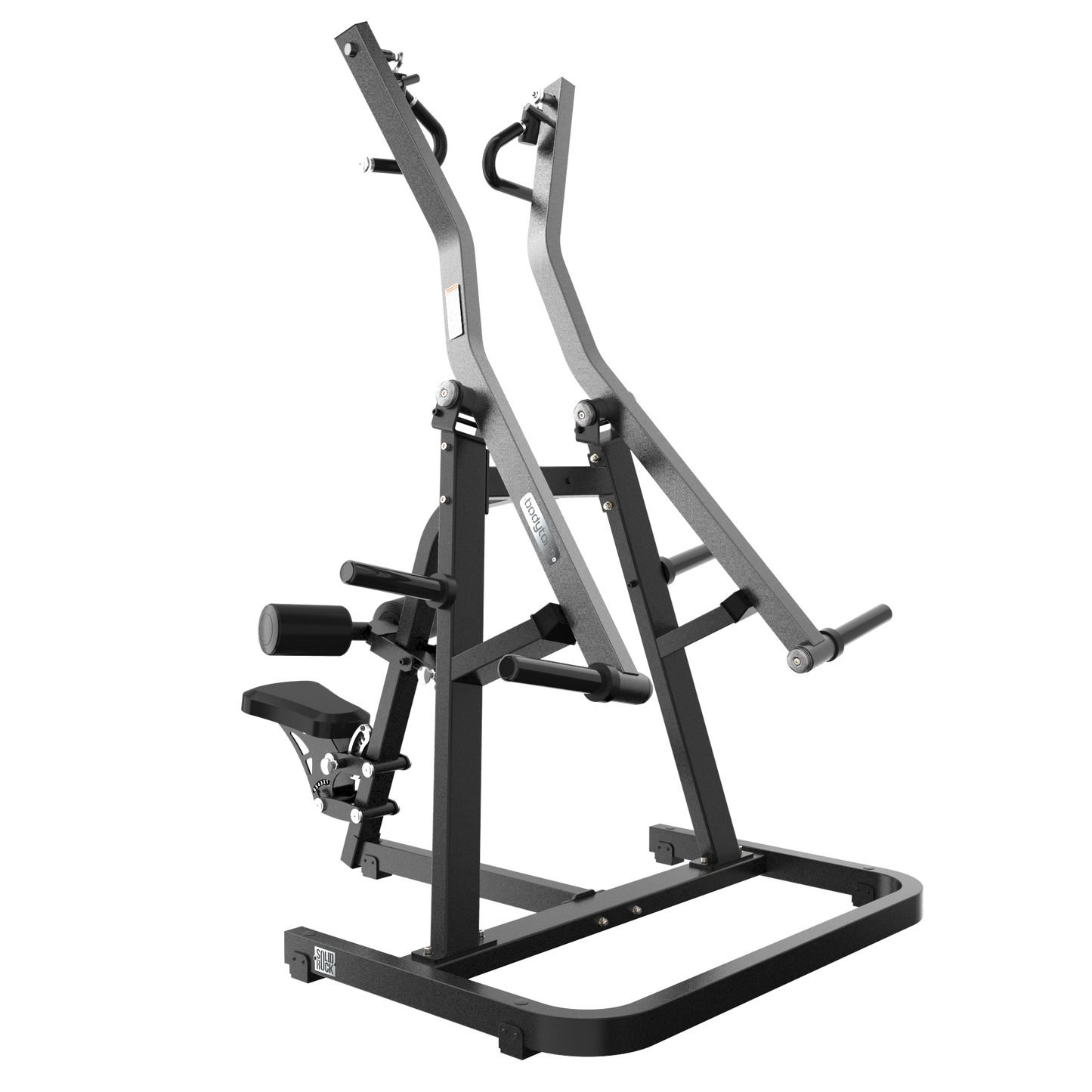

SRX16 Lat Pulldown

Name: SRX16 Lat Pulldown
Brand: PRO Bodytone
SKU: SRX16
Price: 3515.0 EUR
Availability: InStock

SKU:SRX16

Description

Free-load lat pulldown machine with guided movement and reinforced structure. 100x50 mm and 75x50 mm tubes, 8/10 mm plates. 6205 bearings and 25 mm diameter axles. Maximum load 250 kg. High-density ergonomic upholstery.

Speak with an expert

Any questions? Our experts can help.

View Product Details

Technical Specifications

Work zone	Upper body \| Dorsal \| Trapeze \| Rhomboids
Dimensions	135 x 175 x 207 cm
Net weight	150 kg
Structure	Tube 100 x 50 mm and 75 x 50 mm, joint by robotic welding.
Max user weight	150 kg
Max load weight	250 kg (125 kg per arm).
Plate holder	PVC Ø50 x 250 mm.
Bushings	Calibrated steel Ø65 mm, 8 mm.
Bearings	6205.
Axles	Steel 20# Ø25 mm.
Grips	Ø34 mm tube with PVC sleeve.
Upholstery	Foam 60 mm, 160 kg/m3, Pebbled Leather.
Adjustment system	6 pop pin positions.
Base protection	Plastic levelers.
Hardware	M10, hardness 8.8.
Painting system	Electrostatic coating.
Platform	Non-slip, 4 levels.

Forza_Hero (1).jpg__PID:1d984513-941b-400f-9f50-8e0f5f38c735

Discover

SRX SOLID ROCK

The Solid SRX range is Bodytone's professional plate-loaded line designed to deliver real strength sensations, maximum stability, and uncompromising performance .

Built on a 3mm carbon steel frame with robotic welding and reinforced structural plates, the Solid SRX is designed to withstand high-intensity training and heavy loads of up to 250 kg . Its iso-lateral movements , calibrated steel bushings, high-precision bearings, and D-shaped bases ensure a smooth, safe, and natural motion.

It is the ideal choice for demanding commercial gyms, high-performance centers and strength areas looking for visual impact, extreme durability and an authentic training experience.
